加热炉高清工业电视系统
产品编号：STV7100

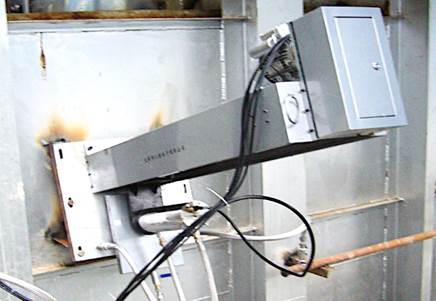

STV7100加热炉高清工业电视系统，采用先进的成像技术和高温防护技术，具有图像高清、防护技术先进、自动保护等特点。该产品可广泛应用于冶金、石化、水泥、玻璃、电力等行业，用来对各种加热炉窑内的工况和生产过程进行连续监控，是目前国内外同类高温工业电视的升级换代产品。
1. Real-time monitoring the movement condition of slab inside the furnace.
2. Real-time monitoring the wearing situation of lining inside the furnace.
3. Real-time monitoring the flame condition inside the furnace.
4. Enter and withdraw device to ensure the safety of camera protector
5. On-line maintenance possible.
1. High Definition Camera
The system is using a 800×600 high definition camera, a special coated high temperature lens to ensure the sharpness of image.
2. Unique Noise Reduce Technology
The camera is customized made using our company’s unique noise reduce design. Which can provides a better Signal-Noise Ratio (SNR).
3. Advanced Self-Protection System
This system is adopted our Enter-and-Withdraw device, when the system detects cooling medium supply pressure drops, or inside temperature of camera protector increase. The protector withdraws from the furnace.
4. Safety Protection
The system adopts a gravity drive furnace door. When the camera protector withdraws from the furnace, the door will close by gravity, and fully seal to ensure on-site worker’s safety.
HD Monitor Image V.S. Common Monitor Image
|
Cooling Medium |
Cooling Air |
Inlet Pressure |
0.4～0.7 MPa |
|
Pipe Diameter |
DN25 |
||
|
Flow |
0.8M³/min |
||
|
Cooling Water |
Pressure |
0.3～0.4MPa |
|
|
Flow |
1M³/h |
||
|
Power Supply |
Power Supply |
AC220V 50Hz |
|
|
Power Consumption |
1000W |
||
