回转窑窑内红外监控系统
产品编号：STV6300
STV6300回转窑窑内红外监控系统是我公司针对国内各类工业窑的生产情况，结合国外先进技术开发的，专门用于回转窑窑内工况的监控，其性能优于国外的同类产品。该系统由计算机进行视频图像分析处理，具有监控智能化、结构紧凑、通用性强、稳定可靠、维护简单的特点。操作人员根据工况随时调整操作参数，这对提高回转窑的效率、提高产品质量、实现炉窑的经济、安全运行具有重要意义。
1. Real time monitoring the working condition inside the rotary kiln.
2. Real time monitoring the wearing of lining.
3. Real time temperature measurement with allowance within ±3°C.
4. 640×480 pixels high definition.
5. More than 300,000 temperature measurement points.
6. Automatically save all data and video into system
7. Automatically enter and withdraw device
8. On-line maintenance supported.
1. Sharp Lens and High Resolution Camera
The system combines a 640×480 high-resolution camera and a special coated heat resistance lens to ensure the sharpness of image.

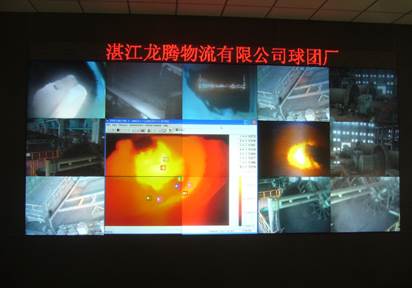

2. Intelligence Software
The intelligence software measures the temperature inside the kiln, the system allows the operator choose up to 48 from 300,000 temperature points. The system will automatic measure the temperature of these points, and generate a temperature profile.
All video and data will be writing into system automatically.

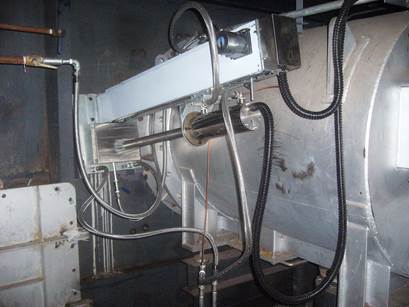

3. Advanced Protection
The system is adopted with automatic enter and withdraw system, when the supply of cooling medium is irregular, or the temperature inside the protector is higher than preset value, the system will automatically withdraw. This also makes on-line maintenance available.
|
Cooling |
Cooling Air |
Inlet Pressure |
0.4～0.7 MPa |
||
|
Air supply pipe diameter |
DN40 |
||||
|
Flow |
0.8M³/min |
||||
|
Cooling Water |
Pressure |
0.3～0.4MPa |
|||
|
Flow |
1M³/h |
||||
|
Power |
Power Supply |
220V AC 50Hz |
|||
|
Power Consumption |
1000W |
||||
