火焰熄火自动保护系统
产品编号：STV5400
STV5400火焰熄火自动保护系统，集火焰监控、熄火保护及视频存储于一身，广泛应用于冶金、石化、水泥、玻璃、电力等行业，用以对锅炉、干燥炉等火焰进行连续的智能化监控，实时掌握炉内火焰燃烧状况。该系统采用我公司自主开发的视频分析软件，可同时对炉内的多个火焰喷射点进行视频监测，能自动测量火焰长度并根据火焰强度进行信号的反馈，实现熄火自动保护。
本产品获国家科技部科技型中小企业技术创新基金立项，对企业防止发生安全事故、保证生产安全以及节能降耗具有积极的意义。
1. Real time monitoring the condition of flame.
2. Automatically measure the length of flame.
3. Automatically trigger alarm when flame is out.
4. Automatically save video and data into system.
5. The equipment is suitable for explosive environment.
6. On-line maintenance supported.
1. Anti Explosion Design
The system is using anti explosive design, both the electric part and camera protector are anti explosion.

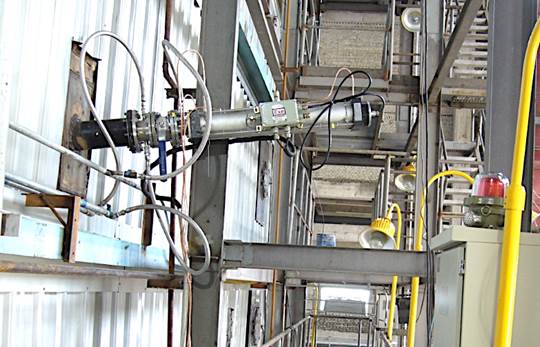

Protective device is using the working principle of dual cylinder. The piston rods are designed as hollow to contain the camera inside. This design ensures the performance of air seal.
2. Intelligence Software
The software can automatically analyze the video. It will measure the length of flame. If the flame is out the system will trigger alarm. All data and video will be store in system automatically.
3. Advanced Protection
The system is adopted with automatic enter and withdraw system, when the supply of cooling medium is irregular, or the temperature inside the protector is higher than preset value, the system will automatically withdraw. This also makes on-line maintenance available.
|
Temperature |
Furnace Temperature |
1800℃ |
|
|
Environment Temperature |
80℃ |
||
|
Cooling Medium |
Cooling Air |
Inlet Pressure |
0.4～0.6 MPa |
|
Air Pipe Diameter |
DN40 |
||
|
Flow |
0.6 M³/min |
||
|
Cooling Water |
Inlet Pressure |
0.3～0.4 MPa |
|
|
Water Pipe Diameter |
DN15 |
||
|
Flow |
1 M³/h |
||
|
Power |
Power Supply |
220V AC 50Hz |
|
|
Power Consumption |
1000W |
||
