精炼炉（VD/RH）监控系统

产品编号：STV5300

STV5300精炼炉（VD/RH）监控系统，是真空罐冶炼的专用监视设备，具有技术先进、图像清晰、防护可靠、操控便利、维护便捷和性能稳定的特点，适用于各种精炼炉在生产过程中对炉内工况的监控。对提高工艺过程控制水平、保证钢水质量具有重要意义。

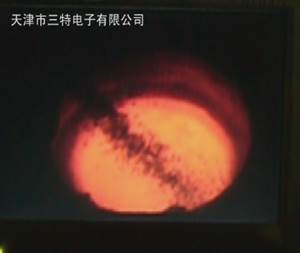

1. Real time monitoring the condition of steel ladle while the refinement processing.

2. Real time monitoring the liquid steel level inside the ladle.

3. Real time monitoring the wearing of heat insulation lining.

4. High definition camera ensures the precise control of refinement process became possible.

1. High Definition Camera and Sharp Lens.
The device is using a high-resolution camera attached with a special coated heat resistance lens. Which ensures a high clarity image.

2. Advanced Protection

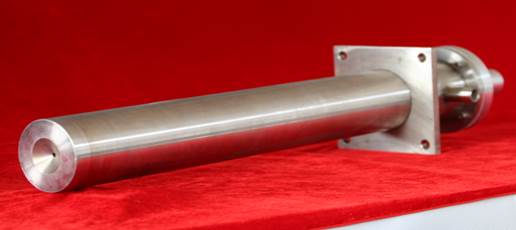

The camera protector adopts special lens protection device to minimize the chance of lens damage. The device include a special “camera see through” design heat insulation plate, speed governor, and micro motor to rotary the plate. This design will not only provide heat insulation for the camera, but also will prevent splashing slag damage the lens.

3. Remote Control and Monitoring
The system can automatically monitoring the working condition of device includes the cooling medium supply, the temperature inside the camera protector. The system also can remote control all parameters about the camera. This provides an on-line commissioning solution for the system.

Item		Parameters
Cooling Medium	Air	Inlet Pressure	0.3～0.6 MPa
		Pipe Diameter	DN20
		Flow	0.5 M³/h
	Water	Pressure	0.30.4 MPa
	Water	Flow	1 M³/h
Power		Power Supply	AC220V 50Hz
Power		Power Consumption	1000W
