高炉红外成像系统
- with Auto-Swipping Device
产品编号：STV4700A

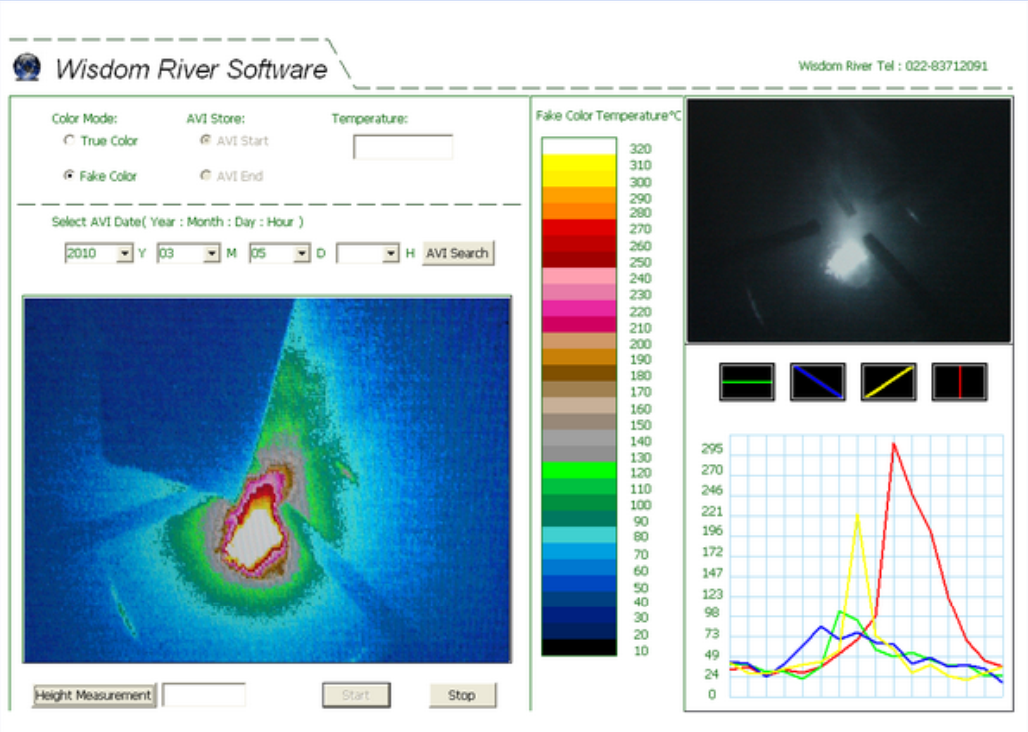

STV4700高炉红外成像系统是一种用于高炉炉内工况监控的专用设备，实时监测炉内气流分布状况、物料分布情况及摆动溜槽的运行情况，配套软件对炉内料面温度进行实时测量、自动生成温度曲线并自动存储图像。这对高炉安全、高效的运行具有积极意义。
1. Real-time monitoring of Burden surface and airflow distribution.
2. Real-time monitor the motion of swing-chute inside Blast Furnace.
3. Real-time monitor the temperature distribution of the burden surface, and generate temperature profile.
4. Automatic lens cleaning device adopted.
5. Video recording function
6. On-line maintenance supported.
1. Ultra Low Temperature Camera
The system is using infrared camera with extremely sensitive wave length – 780nm – 1100nm. This offer the system can capture image when the object’s temperature is higher than 90°C.
2. Deposit dust clean system

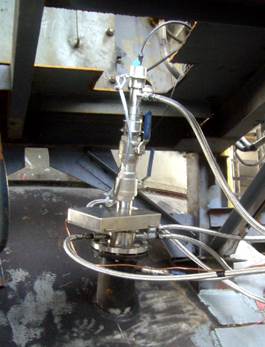

The system is using our company’s design. The protector adopted a lens-cleaning device inside, which can automatically clean the deposit dust in a certain time period
3. Ultra Wide Field of View Lens
The system is using a ultra wide lens which offers 110° field of view (FOV).
4. Safety
The system applies a unique gate valve and ball valve. When the protector withdraws the gate valve and ball valve automatically close, to prevent the spill of coal gas. There is a check-valve structure, when the coal gas supply broken or sudden pressure drop. The structure can prevent the spilling of coal gas.
